Selecting the right boat battery switch depends on your voltage requirements, the number of battery banks, and your preferred mounting style. Whether you need a simple on/off disconnect or a four-position selector, the physical dimensions and contact ratings must match your existing panel and wiring.
This comparison examines eight switches, highlighting their continuous and intermittent current ratings, voltage limits, and protection features. By focusing on these documented specifications, you can identify a unit that fits your specific electrical layout and safety needs.
Our 3 picks for different needs
Blue Sea Systems m-Series Mini Selector Switch
The make-before-break contact design supports switching between two battery banks without power interruption.
Read the details
Blue Sea Systems m-Series On/Off Switch
The removable knob and luminous label support safer handling and low-light readability in tight spaces.
Read the details
4-Position Heavy Duty Battery Selector
The IP68 waterproof rating and ISO 8846 standards compliance suit all-weather marine environments.
Read the detailsAll products, in detail
Seachoice Dual Battery Select Switch
This Seachoice switch permits selection between batteries for starting, charging, or parallel operation. It is designed for systems under 50V and features a 250A continuous capacity with a 360A intermittent rating. The unit is UL listed, ignition protected, and CE approved. Its compact 5-1/4 inch by 2-5/8 inch size supports installation in standard marine panels.
Buyers managing two battery banks will find this model suitable for flexible power distribution.
- 250A continuous and 360A intermittent capacity
- UL listed, ignition protected, and CE approved

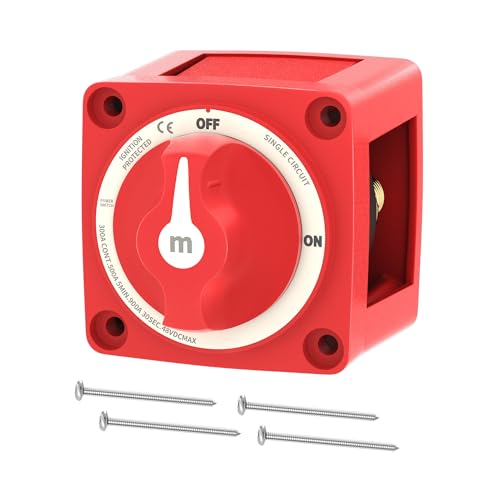

Blue Sea Systems m-Series On/Off Switch
The Blue Sea Systems m-Series on/off switch offers a compact design for tight spaces with surface, front, or rear panel mounting options. It features a removable knob to help prevent accidental current flow and includes a luminous label for low-light readability. The unit supports 300A continuous and 375A intermittent current at a 32V DC max rating.
One-piece tin-plated copper studs measure 7/8 inch and accept multiple cables. This switch is ignition protected for use in gasoline-powered boat engine rooms.
- 300A continuous and 375A intermittent rating
- 32V DC max voltage with ignition protection
Blue Sea Systems m-Series Mini Selector Switch
This four-position Blue Sea Systems mini selector switch allows users to switch or combine two battery banks. It features a make-before-break contact design that supports switching between banks without power interruption. The unit offers a 300A continuous rating at 32V DC max and includes ignition protection for engine room installation.
Mounting options include surface, flush, or rear panel placement. The compact design helps fit the unit into limited mounting areas on the boat.
- Four-position selector with make-before-break contacts
- 300A continuous rating at 32V DC max
Blue Sea Systems e-Series On/Off Switch
The Blue Sea Systems e-Series on/off switch controls a single battery bank or load, isolating power during maintenance or storage. It features a compact design with surface or rear panel mounting options. The unit includes tin-plated copper studs that accept multiple cables for secure connections.
A textured knob and face allow operation by feel in low visibility conditions. This switch is ignition protected and supports a 48V DC max rating, making it suitable for higher voltage marine systems.
- Single circuit control with 48V DC max rating
- Textured knob for low-light operation
Blue Sea Systems e-Series Selector Switch
This four-position Blue Sea Systems e-Series selector switch switches or combines two battery banks. It features a 325A continuous rating at 32V DC max and includes ignition protection for installation in gasoline-powered boat engine rooms. The compact design makes installation in tight places easy, with multiple mounting options for surface or rear panel placement.
One-piece copper studs are 7/8 inch long and accept multiple cables. Tactile textures on the face let the user operate the switch in low or no light.
- 325A continuous rating at 32V DC max
- Four-position selector with ignition protection
Nilight 90015A Battery Switch
The Nilight 90015A battery switch is a heavy-duty on/off unit with an ABS plastic housing. It features a rear cover that insulates terminals against short circuits and includes four sets of bolts in the package. The switch operates at 275A continuous and 455A intermittent at DC 12V, with a 1250A momentary rating.
It is compatible with DC 12-48V systems and can stand alone or be locked together with other switches. This unit is widely used for cars, marine boats, RVs, and trucks to eliminate power draw when not in use.
- 275A continuous and 455A intermittent at 12V
- ABS housing with rear terminal insulation
4-Position Heavy Duty Battery Selector
This 4-position battery selector switch offers control for Battery 1, Battery 2, Both, or Off. It features a make-before-break design that allows changing settings without dropping power to critical devices. The unit has a 300A continuous rating and a 48V DC max voltage. It includes an IP68 waterproof rating and meets ISO 8846 standards for marine use.
The switch is built with an ABS plastic housing and corrosion-resistant tinned copper studs. Terminals are 3/8"-16 and accept up to 2/0 AWG cables.
- IP68 waterproof rating meeting ISO 8846 standards
- 300A continuous rating at 48V DC max
300A Waterproof Boat Battery Disconnect
This 300A boat battery disconnect switch features a single circuit on/off design with ignition protection. It has tinned copper inner studs measuring 2 x 3/8" for good conductivity. The housing is made of flame-retardant plastic for safer use in moist environments. The switch base has a partition design to reduce interference between wires.
It is suitable for 12-48V DC systems and is often used with battery boxes or fuse blocks to isolate and protect the electrical system in marine, car, or RV applications.
- Flame-retardant plastic housing with partitioned base
- Tinned copper studs measuring 2 x 3/8"
Head-to-Head Comparisons
Blue Sea m-Series vs e-Series Selector Switches
Both the Blue Sea Systems m-Series mini selector and the e-Series selector switch offer four-position control for two battery banks. The m-Series model lists a 300A continuous rating, while the e-Series model lists a 325A continuous rating. Both units operate at a 32V DC max voltage and include ignition protection for engine room installation.
The m-Series features a make-before-break contact design explicitly noted for switching without power interruption. The e-Series also includes tactile textures for low-light operation. Buyers should choose based on their specific current draw needs and preferred mounting aesthetics.
e-Series On/Off vs m-Series On/Off Switches
The Blue Sea Systems e-Series on/off switch supports a 48V DC max rating, while the m-Series on/off switch supports a 32V DC max rating. The e-Series is designed for single circuit control, whereas the m-Series offers a removable knob to help prevent accidental current flow.
The m-Series features a luminous label for low-light readability, while the e-Series uses a textured knob and face for operation by feel. Both units are ignition protected and offer flexible mounting options. The voltage difference is the primary technical distinction for buyers with higher voltage systems.
Nilight On/Off vs 4-Position Selector Switch
The Nilight 90015A is a two-position on/off switch, while the 4-position heavy duty selector offers control for Battery 1, Battery 2, Both, or Off. The Nilight unit lists a 275A continuous rating at 12V, whereas the 4-position selector lists a 300A continuous rating at 48V DC max.
The 4-position selector features an IP68 waterproof rating and meets ISO 8846 standards. The Nilight switch includes a rear cover that insulates terminals against short circuits. Buyers needing multi-bank selection should look at the 4-position unit, while those needing a simple disconnect may prefer the Nilight.
Buying Guide
Voltage and Current Ratings
Check the maximum DC voltage and continuous current rating of your electrical system. Some switches are rated for 32V DC max, while others support up to 48V DC. Continuous ratings vary from 250A to 325A in this selection. Ensure the switch rating exceeds your system's peak load to prevent overheating.
For essential maintenance and fueling tools, matching the switch to your battery capacity is critical.
Mounting and Panel Fit
Determine if you need surface, front, or rear panel mounting. Compact designs help fit units into limited mounting areas. Check the physical dimensions, such as the 5-1/4 inch by 2-5/8 inch size of the Seachoice model. Some switches offer three mounting options, while others offer two.
Verify that your existing panel cutout or available space accommodates the specific unit's footprint and stud length.
Protection and Safety Features
Ignition protection is a key feature for installation in gasoline-powered boat engine rooms. Look for units that are UL listed or CE approved if required by your local regulations. Waterproof ratings, such as IP68, indicate suitability for wet environments. Some switches include removable knobs or luminous labels to enhance safety during service.
These features help meet location requirements for protected components in marine settings.
Contact Design and Operation
Consider whether you need a simple on/off disconnect or a multi-position selector. Make-before-break contact designs allow switching between battery banks without power interruption. Tactile textures on the switch face support operation in low or no light. Removable knobs can help prevent accidental current flow. Choose a contact design that matches your operational workflow and safety preferences for your specific vessel.
Frequently Asked Questions
What is the difference between continuous and intermittent ratings?
Continuous rating indicates the maximum current the switch can handle indefinitely, while intermittent rating allows for higher current for short periods. Always size the switch based on your system's continuous load to ensure long-term reliability and safety.
Can I use a 32V switch in a 48V system?
No, you should not use a switch rated for 32V DC max in a 48V system. Exceeding the voltage rating can compromise the insulation and safety of the switch. Select a unit with a voltage rating that matches or exceeds your system voltage.
What does ignition protection mean for a battery switch?
Ignition protection means the switch is designed to prevent sparks that could ignite fuel vapors. This makes it suitable for installation in engine rooms of gasoline-powered boats where flammable vapors may be present.
How do I choose between surface and rear panel mounting?
Surface mounting places the switch on the face of the panel, while rear panel mounting places it behind the panel. Choose based on your available space and aesthetic preference. Ensure the mounting method supports the torque required for your cable connections.
