Selecting the right compressed air filter depends on your specific air quality needs and line capacity. Whether you are protecting a paint booth from oil aerosols or simply removing bulk moisture from a shop line, the filtration stage and port size must match your equipment.
This guide compares eight options ranging from simple in-line traps to multi-stage dryers. We look at flow rates, pressure ratings, and filtration precision to help you identify the unit that fits your compressor output and tool requirements.
Our 3 picks for different needs
NANPU 3/4" NPT 3-Stage Dryer Regulator
The three-stage system with desiccant drying removes oil aerosols and moisture to prevent paint fisheyes and tool damage.
Read the details
NANPU DFR-03 3/8" NPT Filter Regulator
The FRL combo unit handles filtration, pressure regulation, and lubrication in a single 3/8" NPT package for standard tools.
Read the details
Heavy Duty 3/4" NPT 5 Micron Filter
The 3/4" NPT port and 140 CFM rating make this suitable for main distribution lines requiring high volume and 5-micron filtration.
Read the detailsAll products, in detail
Heavy Duty 1/2" NPT 5 Micron Filter
This in-line particulate filter features a 5-ounce metal bowl and a manual push drain for moisture removal. It is rated for 225 PSI input and 140 CFM flow, making it suitable for standard shop lines. The visible sight glass allows users to monitor liquid levels without disassembly.
A wall mounting bracket and operation instructions are included in the package.
- 5 micron element removes 95% of moisture and debris
- 1/2" NPT port with 0.850" outside thread diameter
NANPU DFR-03 3/8" NPT Filter Regulator
This piggyback combo unit combines double 5-micron brass filters with a pressure regulator. It includes a semi-automatic drain and a polycarbonate bowl with a metal guard for impact protection. The unit operates at 0-125 PSI with a flow rate of 70 SCFM at 90 PSI.
It comes with a gauge, bracket, couplers, and thread seal tape for complete installation.
- Double 5 micron brass filter elements for extended life
- Includes semi-auto drain and 0-150 PSI gauge
Heavy Duty 3/4" NPT 5 Micron Filter
Designed for higher flow applications, this in-line filter uses a 5-ounce metal bowl and a 5-micron element. It handles 140 SCFM flow with a maximum input pressure of 250 PSI. The visible sight glass helps track moisture accumulation, and a wall mounting bracket is included.
The 3/4" NPT ports feature a 1.05" outside thread diameter for secure connections.
- 250 PSI max input pressure rating
- 140 SCFM flow rate with 5 micron filtration
NANPU 1/2" NPT 0.01 Micron Filter
This sub-micronic filter kit uses unbleached, recycled cellulose media to capture 0.01 micron particles, oil aerosols, and moisture. It is designed to protect sensitive equipment like spray guns and CNC machines from fine contamination. The unit supports up to 100 CFM flow and withstands 125 PSI pressure.
It features a standard 1/2" NPT port for easy installation on most compressor lines.
- 0.01 micron filtration for oil and moisture removal
- Eco-friendly cellulose media with high absorption
NANPU 3/4" NPT 3-Stage Dryer Regulator
This industrial-grade unit features a three-stage system: a 5-micron filter, a 0.01-micron coalescing filter, and a desiccant dryer. The desiccant beads indicate saturation by changing color from blue to pink, eliminating the need for liquid drains. It handles 141 CFM flow and operates up to 175 PSI.
The package includes replacement elements, desiccant bags, and fittings for a complete air prep setup.
- Three-stage filtration including desiccant drying
- 141 CFM flow with 3/4" NPT ports
NANPU 3/8" NPT FRL Combo Unit
This filter, regulator, and lubricator (FRL) combo provides complete air preparation in a compact unit. It uses a 5-micron brass filter element and a semi-automatic drain with a protected polycarbonate bowl. The regulator allows pressure adjustment from 0-125 PSI, and the unit supports 60 SCFM flow.
An installation kit with brackets, couplers, and fittings is included for quick setup.
- Combines filtration, regulation, and lubrication
- 60 SCFM flow rate with 3/8" NPT ports

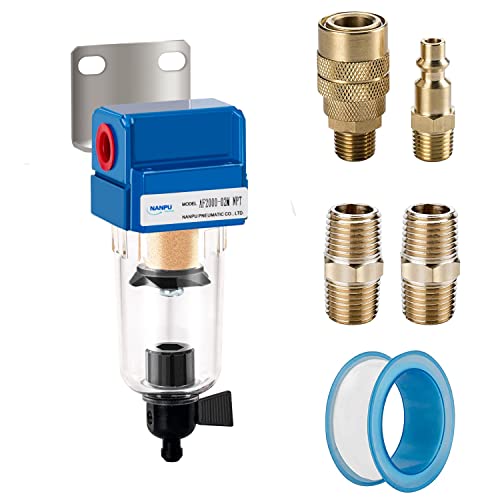

NANPU 1/4" NPT 5 Micron Filter
This compact in-line filter is designed for smaller air lines, featuring a 1/4" NPT port and a 5-micron brass element. It operates at 0-125 PSI with a flow rate of 27 SCFM at 90 PSI. The unit includes a semi-automatic drain, a polycarbonate bowl, and a mounting bracket.
It is suitable for light-duty pneumatic tools or specific instrument air applications requiring fine filtration.
- 1/4" NPT port for small diameter lines
- 27 SCFM flow rate with 5 micron brass element
THB F706N 3/4" Moisture Trap
The THB F706N is a wall-mount moisture and water filter trap designed for compressed air applications. It features 3/4" FNPT threads and is categorized as an air line filter. The unit is intended to separate liquid moisture from the air stream before it reaches downstream tools.
Its orientation is specified for wall mounting, providing a fixed point for drainage and filtration in shop environments.
- 3/4" FNPT thread connection
- Wall-mount orientation for moisture separation
Head-to-Head Comparisons
1/2" vs 3/4" Heavy Duty Filters
Both the 1/2" and 3/4" heavy duty filters use 5-micron elements and metal bowls with sight glasses. The 1/2" model is rated for 225 PSI input and 140 CFM flow, while the 3/4" model handles 250 PSI input and the same 140 CFM flow. The 3/4" version offers a slightly higher pressure rating and a larger port diameter, which may reduce pressure drop in high-demand lines.
Choose the 1/2" unit if your line size is standard, or the 3/4" if you need the extra pressure headroom.
Filter Regulator vs FRL Combo
The NANPU DFR-03 is a filter and regulator combo, while the AC3010-03 is a full FRL unit that includes a lubricator. Both use 3/8" NPT ports and 5-micron brass elements. The FRL unit adds oil misting for tools that require lubrication, whereas the DFR-03 is better for applications where oil must be excluded, such as certain paint or air tool setups.
Check your tool manual to see if lubrication is required or prohibited before choosing between these two configurations.
Sub-Micronic Filter vs 3-Stage Dryer
The 1/2" sub-micronic filter uses 0.01 micron cellulose media to capture fine particles and oil aerosols but relies on standard drainage. The 3/4" three-stage unit adds a desiccant dryer that absorbs water vapor without liquid drains. The three-stage unit is better for applications requiring truly dry air, such as plasma cutting or sensitive electronics, while the sub-micronic filter is a simpler option for protecting tools from fine contamination where vapor removal is less critical.
Buying Guide
Match Port Size to Your Line
The most common mistake is selecting a filter with a port size that does not match your air line. Check the NPT thread size of your existing fittings. A 1/4" filter is for small instrument lines, 3/8" is common for shop tools, and 1/2" or 3/4" are for main distribution.
Mismatched sizes require adapters that can restrict flow or create leaks, so verify your line diameter before purchasing.
Understand Filtration Stages
Not all filters remove the same contaminants. A 5-micron filter catches bulk debris and liquid water. A 0.01 micron coalescing filter removes fine oil aerosols. A desiccant dryer removes water vapor. Determine what your tools need. Paint guns often require coalescing filtration to prevent fisheyes, while simple pneumatic tools may only need basic particulate and moisture removal.
Check Flow Rate Capacity
Flow rate, measured in CFM, indicates how much air the filter can handle without significant pressure drop. If your compressor outputs 100 CFM, a filter rated for 60 CFM will restrict your system. Ensure the filter's flow rating meets or exceeds your compressor's output at the operating pressure.
Higher flow filters often have larger bowls and ports to accommodate the volume.
Consider Maintenance and Drainage
Filters collect moisture and debris that must be removed. Manual drains require you to push a button regularly, while semi-automatic drains open periodically to release liquid. Desiccant dryers require you to monitor bead color and replace or regenerate the media. Choose a drainage method that fits your maintenance routine to ensure the filter continues to perform effectively.
Frequently Asked Questions
What is the difference between a filter and a regulator?
A filter removes contaminants like water, oil, and debris from the air stream. A regulator controls the pressure of the air exiting the unit. Many units combine both functions, but a filter alone does not adjust pressure, and a regulator alone does not remove contaminants.
Do I need a lubricator with my air filter?
Only if your pneumatic tools require oil misting for lubrication. Many modern tools are self-lubricating or do not require oil. If your tool manual prohibits oil, use a filter and regulator combo without a lubricator to avoid damaging the tool's internal components.
How often should I replace filter elements?
Replacement frequency depends on air quality and usage. Indicators like a drop in pressure or a clogged sight glass signal it is time to change the element. Some units have pop-up indicators or color-changing beads that show when the media is spent. Regular inspection is key to maintaining performance.
Can I use a 1/2" filter on a 3/4" line?
You can use an adapter, but it may restrict flow and create a pressure drop. It is best to match the filter port size to your line size for optimal performance. If you must use a smaller filter, ensure the flow rate rating is sufficient for your application to avoid system inefficiency.
