Selecting the correct industrial relief valve requires matching the pressure rating, port size, and material to your specific system requirements. Whether you are maintaining a residential hot water heater or managing an industrial pneumatic line, the valve must open at the precise pressure needed to protect your equipment.
This comparison examines seven options, ranging from standard 30 PSI bronze valves for water heating to high-pressure 400 PSI industrial units. We focus on documented specifications such as inlet/outlet threading, maximum temperature, and construction materials to help you identify the right fit for your application.
Our 3 picks for different needs
Apollo 10-400 Series 30 PSI Bronze Valve
The Apollo 30 PSI valve is ASME rated for Section IV systems and features a female NPT inlet for standard connections.
Read the details
Valley Industries 400 PSI Relief Valve
The Valley Industries valve handles 400 PSI and 15 GPM, suitable for applications exceeding standard residential limits.
Read the details
PRO-EDGE 200 PSI Brass Safety Valve
The PRO-EDGE valve is preset at 200 PSI with 168 SCFM flow, designed for industrial air systems with 1/4-inch NPT ports.
Read the detailsAll products, in detail
Conbraco 10-408-05 Relief Valve
This genuine replacement part is identified by the Conbraco Industries model number 10-408-05. The listing notes it is a Conbraco Industries item associated with the Air Gas North Central brand name. It serves as a specific replacement component for systems requiring this exact model number.
Buyers should verify their existing valve's model number matches this specification before purchasing to ensure compatibility with their current installation.
- Manufacturer Model # 10-408-05
- Genuine Replacement Part
Watts 0342691 30 PSI Bronze Relief Valve
The Watts 0342691 is a female pressure relief valve with 3/4-inch inlet and outlet connections. It is rated for 30 PSI and 510,000 BTU, making it suitable for standard residential hot water systems. The bronze construction provides durability for typical plumbing applications. This valve is designed to release excess pressure to protect the system from over-pressurization in standard water heating setups.
- 3/4-inch inlet and outlet
- 30 PSI pressure rating

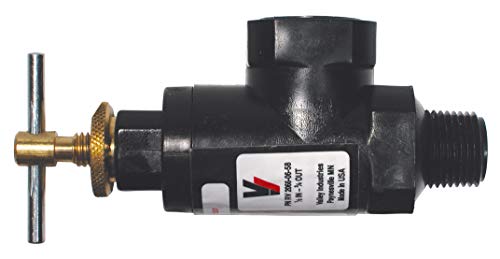

Valley Industries 400 PSI Relief Valve
The Valley Industries valve features 3/4-inch MNPT inlet and FNPT outlets, handling up to 400 PSI and 15 GPM at 120°F. It uses nylon and brass construction with Viton seals to prevent leaking. A brass knurled locknut and tee-handle allow for quick adjustments. This high-pressure option is suitable for industrial applications requiring robust flow control and pressure management beyond standard residential limits.
- Handles 400 PSI and 15 GPM
- Nylon and brass construction
Apollo 10-400 Series 50 PSI Bronze Valve
This Apollo Valve 10-400 Series safety relief valve is preset at 50 PSI and features a 3/4-inch male NPT inlet. It is ASME safety rated for Section IV water heating systems and has a maximum temperature of 250°F. The ASTM B584 bronze body and stainless steel spring offer corrosion resistance.
It is ideal for high-temperature hot water systems requiring a higher pressure set point than standard 30 PSI valves.
- 50 PSI preset relief pressure
- ASME Section IV rated
HYDRO MASTER 150 PSI Brass Relief Valve
The HYDRO MASTER safety relief valve features a 3/4-inch male NPT inlet and an all-brass body with a stainless steel spring. It is designed for protection against excessive pressure in hot water systems, with a 150 PSI rating. The universal 3/4-inch size is suitable for most U.S. residential usage.
This valve offers a higher pressure threshold than standard 30 PSI models, providing flexibility for systems with higher operating pressures.
- 150 PSI pressure rating
- All brass body construction
Apollo 10-400 Series 30 PSI Bronze Valve
This Apollo Valve 10-400 Series safety relief valve is preset at 30 PSI and features a 3/4-inch female NPT inlet. It is ASME safety rated for Section IV water heating systems and has a maximum temperature of 250°F. The ASTM B584 bronze body and stainless steel spring provide corrosion resistance.
It is a standard choice for residential hot water systems requiring a 30 PSI set point with a female threaded inlet.
- 30 PSI preset relief pressure
- 3/4-inch female NPT inlet
PRO-EDGE 200 PSI Brass Safety Valve
This PRO-EDGE INDUSTRIAL PNEUMATICS AND CONTROLS safety valve is preset at 200 PSI with a flow rate of 168 SCFM. It features a 1/4-inch NPT connection and is made in the USA. The operating temperature range is -65°F to 400°F, making it suitable for pneumatic systems.
The brass construction ensures durability in industrial air applications where precise pressure relief is required.
- 200 PSI preset with 168 SCFM flow
- 1/4-inch NPT connection
Head-to-Head Comparisons
Apollo 50 PSI vs Apollo 30 PSI: Pressure Set Points
Both Apollo 10-400 Series valves feature ASTM B584 bronze bodies and stainless steel springs, rated for 250°F maximum temperature. The key difference is the preset relief pressure: the 50 PSI model releases excess pressure at a higher threshold, while the 30 PSI model is standard for most residential water heaters.
Additionally, the 50 PSI version has a male NPT inlet, whereas the 30 PSI version has a female NPT inlet. Choose the 50 PSI valve if your system requires a higher set point, or the 30 PSI valve for standard applications.
Valley Industries 400 PSI vs HYDRO MASTER 150 PSI
The Valley Industries valve is rated for 400 PSI and 15 GPM, making it suitable for high-pressure industrial applications. It features nylon and brass construction with Viton seals. In contrast, the HYDRO MASTER valve is rated for 150 PSI and is designed for hot water systems with an all-brass body.
The Valley valve offers a significantly higher pressure capacity and flow rate, while the HYDRO MASTER is better suited for standard residential or light commercial hot water protection. Select based on your system's maximum operating pressure.
PRO-EDGE Pneumatic vs Watts Water Heating
The PRO-EDGE valve is a pneumatic safety valve preset at 200 PSI with a 1/4-inch NPT connection, designed for air systems with a flow rate of 168 SCFM. The Watts valve is a 30 PSI water relief valve with 3/4-inch connections, rated for 510,000 BTU.
These two serve entirely different media: the PRO-EDGE is for compressed air, while the Watts is for hot water. Do not interchange these; choose the PRO-EDGE for pneumatic lines and the Watts for water heating systems.
Buying Guide
Match Pressure Rating to System Limits
The relief valve must open at a pressure slightly above your system's maximum operating pressure but below the equipment's burst pressure. Standard residential water heaters often use 30 PSI valves, while industrial systems may require 150, 200, or 400 PSI. Verify your system's pressure requirements and select a valve with a preset rating that aligns with your safety codes and equipment specifications.
Verify Port Size and Threading
Ensure the valve's inlet and outlet sizes match your existing plumbing or piping. Common sizes include 3/4-inch NPT for water systems and 1/4-inch NPT for pneumatic lines. Note whether the threads are male or female, as this affects how the valve connects to your system.
Check the specific thread type (NPT, MNPT, FNPT) listed in the product details to ensure a proper seal and fit.
Consider Material and Temperature
Bronze and brass are common materials for water relief valves, offering corrosion resistance. For high-temperature applications, check the maximum temperature rating; some valves are rated for 250°F or higher. For pneumatic systems, brass construction is typical. If your system operates at extreme temperatures or involves corrosive media, ensure the valve's materials and seals (such as Viton) are compatible with your specific fluid.
Check Compatibility with Fittings
When installing a relief valve, ensure it is compatible with your existing industrial pipe fittings and industrial tube fittings. The valve's connection type must match the adjacent components. If you are replacing a valve, remove the old unit and measure the threads to confirm the new valve will fit.
Proper compatibility prevents leaks and ensures the valve functions correctly under pressure.
Frequently Asked Questions
Can I use a 30 PSI valve in a 50 PSI system?
No, a 30 PSI valve will open at 30 PSI, which is below the 50 PSI operating pressure. This would cause constant discharge. You must use a valve with a preset pressure rating higher than your system's maximum operating pressure to prevent unnecessary release.
What is the difference between male and female NPT inlets?
A male NPT inlet has external threads, while a female NPT inlet has internal threads. You must match the valve's inlet type to the connection on your system. For example, a valve with a male inlet connects to a female port on the equipment.
Are these valves suitable for both water and air?
No, these valves are specific to their media. The Watts, Apollo, and HYDRO MASTER valves are designed for hot water systems. The PRO-EDGE and Valley Industries valves are designed for pneumatic or high-pressure industrial applications. Do not interchange them.
How do I know if a valve is ASME rated?
Check the product description for ASME certification, such as 'ASME safety rated for Section IV water heating systems.' This indicates the valve meets specific safety standards for water heating applications. Not all valves are ASME rated, so verify this if required by your local codes.
