Selecting the right three wing slotting cutter depends on your router's shank size and the depth of the slot you need to cut. Different bits offer varying carbide heights, ranging from 1/16 inch to 9/16 inch, which determines the maximum depth of the groove you can create in your material.
The eight options listed here cover a range of shank diameters, including 1/4 inch and 1/2 inch, as well as different arbor requirements. Some bits are self-contained, while others require specific arbors and bearings sold separately. Matching the bit's specifications to your existing router setup is the first step in choosing the correct tool for your joinery projects.
Our pick: XDENGP 1/2 Shank 3 Wing Slotting Cutter. The 1/4 inch carbide height on this 1/2 shank bit suits users needing deeper slots for T-moldings.
Our 3 picks for different needs
XDENGP 1/2 Shank 3 Wing Slotting Cutter
The 1/4 inch carbide height on this 1/2 shank bit suits users needing deeper slots for T-moldings.
Read the details
Freud 56-100 3 Wing Slotting Cutter
The 1/16 inch carbide height on this Freud bit is appropriate for shallow grooves and fine detail routing.
Read the details
Whiteside 6700A 3 Wing Slotting Cutter
This Whiteside bit uses a bearing on the arbor to provide varying depths of cut for different joint types.
Read the detailsAll products, in detail

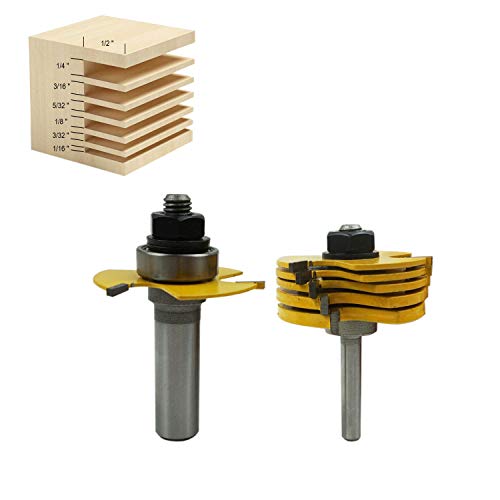

XDENGP 1/2 Shank 3 Wing Slotting Cutter
This XDENGP cutter features a 1/2 inch shank and a 1/4 inch carbide height. It is designed for table-mounted and hand-held routers, targeting T-molding slot cutting. The bit uses C3 micro-grain tungsten carbide blades for wear resistance. It is suitable for wood, MDF, plywood, and acrylic, but not for metal or non-wood materials.
The design includes an anti-kickback feature to enhance steadiness during operation.
- 1/2 inch shank diameter
- 1/4 inch carbide height
Amana 53410 3 Wing Slotting Cutter
The Amana 53410 is a three-wing slotting cutter assembly with a 1-7/8 inch diameter and a 1/4 inch shank. The listing provides limited detail beyond the shank size and wing count. It is a standard configuration for routing slots in wood products. Buyers should verify specific carbide height and arbor requirements against their router specifications, as these details are not fully expanded in the provided source data.
- 1/4 inch shank
- 1-7/8 inch diameter

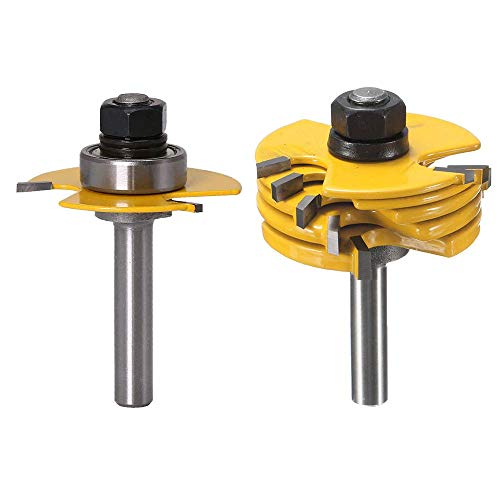

XDENGP 1/4 Shank 3 Wing Slotting Cutter
This XDENGP model uses a 1/4 inch shank and offers a 1/8 inch carbide height. It is intended for T-molding slot cutting in wood, MDF, and composite panels. The bit is compatible with both table-mounted and hand-held routers. It features an anti-kickback design and C3 micro-grain tungsten carbide blades.
The 1/8 inch height makes it suitable for shallower slot applications compared to deeper cutting bits.
- 1/4 inch shank diameter
- 1/8 inch carbide height
Amana 53400 3 Wing Slotting Cutter
The Amana 53400 assembly has a 1-7/8 inch diameter and a 1/16 inch cutting height. It features a 1/4 inch shank and an overall length of 2-3/8 inches. This specific height is designed for very shallow slotting applications. The three-wing design aids in material removal.
It is a compact option for routers that require a 1/4 inch shank for fine detail work in wood and similar materials.
- 1/16 inch cutting height
- 2-3/8 inch overall length
Freud 56-112 3 Wing Slotting Cutter
The Freud 56-112 is a 1/4 inch shank cutter with a 9/16 inch cutting depth. It uses TiCo Hi-Density Carbide for durability in hardwoods and composites. The three-wing design allows for efficient material removal. It is ideal for routing slots for T-moldings, spline joints, and tongue and groove joints.
Note that this bit requires a Freud arbor and bearing, which are sold separately, to function properly.
- 9/16 inch cutting depth
- Requires separate Freud arbor and bearing

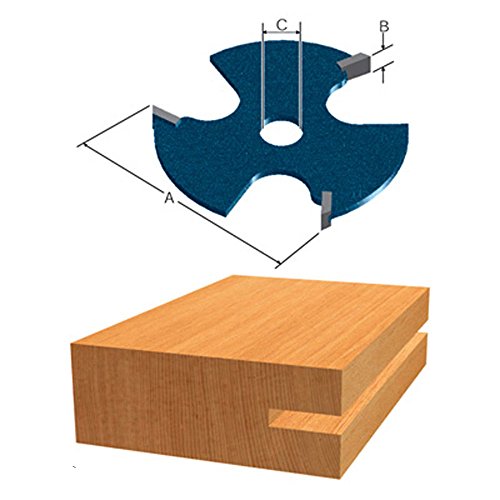

Bosch 85526M 3 Wing Slotting Cutter
The Bosch 85526M is a carbide-tipped three-wing cutter with a 5/16 inch arbor hole. It is designed to cut slots for mouldings, weather-stripping, and edge details. The steel body with carbide tips is built for long life. It requires the use of arbor 92813C. The three-wing design is intended to provide smooth cutting performance in wood and composite materials for various edge detailing tasks.
- 5/16 inch arbor hole
- Requires arbor 92813C
Freud 56-100 3 Wing Slotting Cutter
The Freud 56-100 features a 1/16 inch carbide height and a 9/16 inch maximum cut depth. It has a 5/16 inch bore diameter and a 2 inch overall diameter. This bit is designed for use in hand-held and table-mounted portable routers. It cuts all composition materials, plywood, hardwood, and softwood.
Like other Freud slotting cutters, it requires a specific Freud arbor and bearing, which are sold separately.
- 1/16 inch carbide height
- 5/16 inch bore diameter
Whiteside 6700A 3 Wing Slotting Cutter
The Whiteside 6700A is a carbide-tipped slotting cutter with a 1-7/8 inch cutting diameter and a 5/16 inch bore. It has a 1/16 inch kerf and three wings. It is ideal for creating precise slots for biscuit joints, tongue and groove joints, and splines. The bit mounts on a 5/16 inch arbor.
The depth of cut is determined by the bearing diameter placed on the arbor, allowing for variable slot depths.
- 1-7/8 inch cutting diameter
- 5/16 inch bore
Head-to-Head Comparisons
XDENGP 1/2 Shank vs 1/4 Shank: Shank Size and Depth
The XDENGP 1/2 shank model offers a 1/4 inch carbide height, while the 1/4 shank model offers a 1/8 inch carbide height. If your router accepts 1/2 inch shanks and you need a deeper slot, the 1/2 shank bit is the appropriate choice. If you are using a router that only accepts 1/4 inch shanks, or if you need a shallower slot, the 1/4 shank bit is the fit.
Both bits share the same 2 inch overall diameter and are designed for T-molding slot cutting in wood and composites.
Freud 56-112 vs 56-100: Cutting Depth Differences
The Freud 56-112 is a 1/4 inch shank cutter with a 9/16 inch cutting depth, while the Freud 56-100 features a 1/16 inch carbide height and a 9/16 inch maximum cut depth. The 56-112 is designed for 1/4 inch shank routers, whereas the 56-100 has a 5/16 inch bore diameter.
Both bits require separate Freud arbors and bearings to function properly.
Bosch 85526M vs Whiteside 6700A: Arbor and Bearing Systems
The Bosch 85526M has a 5/16 inch arbor hole and requires arbor 92813C. The Whiteside 6700A also has a 5/16 inch bore but specifies that the bearing diameter placed on the arbor will provide varying depths of cut. This suggests the Whiteside bit may offer more flexibility in slot depth depending on the bearing used.
The Bosch bit is described as cutting slots for mouldings and weather-stripping. Both are three-wing cutters with carbide tips, but the Whiteside explicitly mentions the use of a bearing for depth control, a feature not detailed in the Bosch listing.
Buying Guide
Match Your Router Shank Size
The most critical specification is the shank diameter. Several bits in this list, such as the Amana 53410 and the XDENGP 1/4 shank model, use a 1/4 inch shank. Others, like the XDENGP 1/2 shank model, use a 1/2 inch shank. Check your router's manual to see which shank sizes it accepts.
Using a bit with a shank that does not fit your router's collet is not possible, so this is the first filter to apply when narrowing down your options.
Determine Required Slot Depth
The carbide height of the bit determines the maximum depth of the slot you can cut. Bits with a 1/16 inch carbide height, such as the Amana 53400 and the Freud 56-100, are suited for shallow grooves. Bits with a 1/4 inch carbide height, like the XDENGP 1/2 shank model, allow for deeper cuts.
If you are cutting for T-moldings or specific joinery, measure the required depth of the slot in your material and select a bit with a carbide height that meets or exceeds that requirement.
Check Arbor and Bearing Requirements
Some slotting cutters are self-contained, while others require specific arbors and bearings. The Freud 56-112 and 56-100 both require Freud arbors and bearings, which are sold separately. The Bosch 85526M requires arbor 92813C. The Whiteside 6700A mounts on a 5/16 inch arbor and uses a bearing for depth control.
If you do not already own the required arbor or bearing, you must factor that into your total cost and ensure you have the correct components before purchasing the bit.
Consider Material Compatibility
Most three wing slotting cutters are designed for wood, MDF, plywood, and composite materials. The XDENGP bits explicitly state they are suitable for wood, MDF, plywood, compact panels, acrylic, and particleboard, but should not be used on metal or non-wood materials like steel or iron.
The Freud bits are described as cutting hardwoods, softwoods, plywood, and composite materials. Always verify that the material you intend to cut is compatible with the bit's carbide type and design to avoid damaging the tool or the workpiece.
Frequently Asked Questions
What is a three wing slotting cutter used for?
A three wing slotting cutter is used to cut slots and grooves in wood and composite materials. It is commonly used for creating T-molding slots, spline joints, tongue and groove joints, and biscuit joints. The three-wing design helps with efficient material removal and a smooth finish.
Do I need a special arbor for these bits?
It depends on the specific bit. Some bits, like the XDENGP models, are designed to be fastened directly to the router. Others, such as the Freud 56-112 and 56-100, require specific Freud arbors and bearings that are sold separately. The Bosch 85526M requires arbor 92813C.
Always check the product details for arbor requirements.
Can I use these bits on metal?
No, these bits are designed for wood, MDF, plywood, and composite materials. The XDENGP listings explicitly state that you should not cut metal or non-wood materials like steel, iron, or sand. Using a wood-cutting bit on metal can damage the bit and is not recommended.
What is the difference between 1/4 inch and 1/2 inch shanks?
The shank is the part of the bit that fits into the router's collet. A 1/4 inch shank is common for smaller, hand-held routers, while a 1/2 inch shank is often used for larger, table-mounted routers or for more powerful applications. You must choose a bit with a shank size that matches your router's collet capacity.
